Displacement Sensor
Your Professional Displacement Sensor Supplier
Jinan Nake Test Equipment Co., Ltd. is a high-tech enterprise that integrates research and development, manufacturing, and sales. The company's core product lines include the electronic universal testing machine series, hydraulic universal testing machine series, dynamic fatigue testing equipment series, bending testing machine series, and impact testing machine series.
Professional Team
The company is supported by a professional team consisting of more than 20 R&D engineers, over 50 experienced manufacturing personnel, and an after-sales service team comprising more than 10 dedicated members.
Quality Certification
Our management system is certified under ISO 9001:2015, ensuring consistent and reliable product quality across all stages of production.
On-Time Delivery
We have consistently achieved an on-time delivery rate of over 98.2%, with a product defect rate below 0.3% and a rework rate under 0.28%.
Strong Capabilities
With production and office facilities covering more than 4,000 square meters, the company has been officially recognized as a National High-Tech Enterprise in China.
Parameter
|
Signal output |
Digital (pulse) signal |
|
Measuring stroke |
0-3000mm |
|
Output signal |
Differential, open circuit, push-pull, voltage, RS485/232, absolute selectable |
|
Resolving power |
0.01/0.02/0.05/other |
|
Linearity accuracy |
0.05%FS |
|
Repeatability |
0.01% |
|
Maximum speed |
2000mm/s |
|
Cable length |
4M(standard), can be customized |
|
Wire rope |
Highly flexible imported plastic coated steel wire rope |
|
Outlet tension |
6N |
|
Life |
2 million times To 10 million times |
|
Working voltage |
5V, 5-24V, 10-30v |
|
Working temperature |
-25-85℃ |
|
Protection grade |
IP54 (standard), IP65 |
|
Housing material |
Imported aluminum alloy, surface anti-static interference non-conductive |
Types of Displacement Sensor
The displacement sensors produced by our company mainly include the following types:

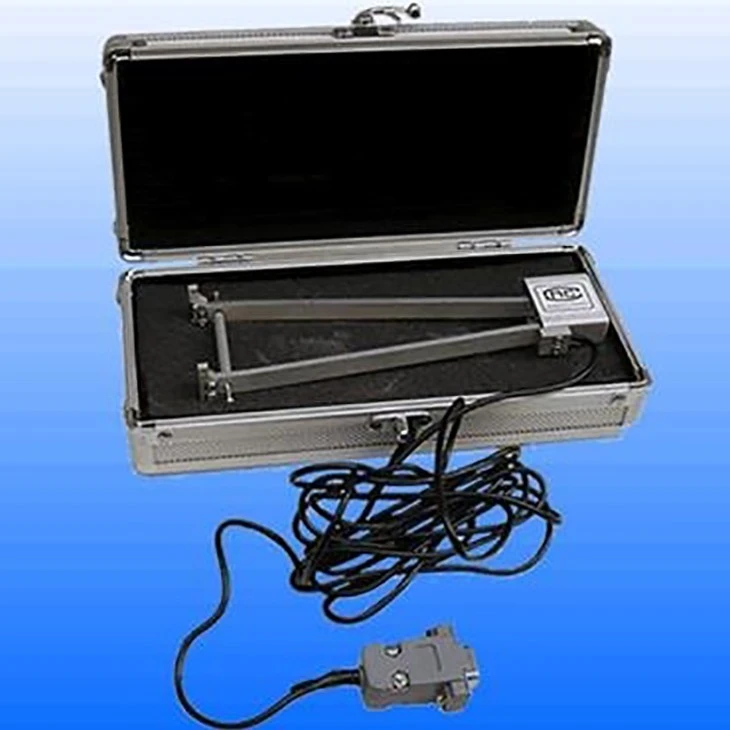

Electronic Extensometer
This series of electronic extensometers are resistance strain extensometers, which are used to measure the linear deformation between two points after the sample or component is stressed.
Draw Wire Encoder
It is our classic pull rope displacement transducer with internal anti-jumper design, which eliminates the possibility of wire jamming. After years of testing on various occasions, it has been recognized by many customers at home and abroad.
Advantages of Displacement Sensor
High Precision
Displacement sensors provide accurate measurements, leading to improved product quality and reliability.
Real-Time Monitoring
Many displacement sensors offer real-time feedback, allowing engineers to make immediate adjustments to processes.
Versatility
With various types available, these sensors are adaptable to many applications, making them valuable in diverse engineering fields.
Reduced Downtime
By enabling proactive monitoring, displacement sensors help reduce system failures and maintenance downtime.
Applications of Displacement Sensor
Machine automation - These are extreme environments so the sensor must have the correct sealing to be suitable.
Aerospace applications - Satellites, drones, space vehicles and flight simulators all have a requirement for movement to be measured and therefore displacement sensors are required.
Hydraulics - Sensors in these applications usually need to be resistant to shock and vibration due to the nature of the industry.
Power turbines - These applications usually use LVDTs which are a type of displacement sensor.
Research testing facilities - Another application which requires suitable sealing for the environment.
Elevators - Measuring the position of the elevator and door opening position.
Special Effects - To create some special effects within the film industry, displacement sensors are needed to help with the creation.
Ramp and bridge position - In any instance when a ramp or bridge needs to be repositioned a displacement sensor is needed. The exact position needs to be measured to ensure the vehicles driving on the bridge/ ramp are safe.
Configuration List
|
No. |
Item |
Configuration |
Quantity |
Notes |
|
1 |
Measuring head |
MICRO3D custom measurement head |
1 set |
With slide rail |
|
2 |
Detection and analysis software |
1 set of video extensometer software installation disk. |
1 set |
|
|
3 |
Acquisition control system |
1 set of software manuals. |
1 set |
|
|
4 |
Calibrator |
Software encryption. |
1 set |
|
|
5 |
Light source |
1 set of system control box (including acquisition card). |
1 set |
|
|
6 |
Mobile support |
1 set of data transmission cable. |
1 set |
|
|
7 |
System Accessories |
Special calibrator |
1 set |
|
|
8 |
Packing box |
LED blue light source |
1 set |
|
|
9 |
Computer |
1 set of three-dimensional head; 1 set of portable tripod |
1 set |
|
Installation Steps of Displacement Sensor
Selecting the Installation Site
Choose a location for the sensor that is as close as possible to the measurement point. Ensure the site is free from potential physical or chemical hazards such as excessive vibration, corrosion, high temperatures, or strong electromagnetic interference.
Preparing the Mounting Bracket
Based on the installation site and measurement requirements, prepare a suitable mounting bracket. The bracket should be rigid and stable enough to maintain the sensor's accuracy.
Installing the Sensor
Secure the sensor to the bracket and attach the cable to the structure being measured. When fixing the cable, pay attention to its length and tension to ensure proper sensor operation.
Connecting the Circuit
Connect the sensor's cable to the data acquisition device or control system. Ensure the connection is stable and reliable, and pay attention to the cable's length and routing to guarantee consistent and accurate signal transmission.
Debugging and Calibration
After installation and connection, debug and calibrate the sensor. Start by manually pulling the cable to verify the sensor's functionality and check if the output signal is correct.
Ordering Process
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit.
4. After the goods is ready, we will inform you the shipment date and other informations by email at the same time.
Packaging and Shipping
|
Packaging |
Standard export wooden box packaging |
|
Shipping |
Sea shipment, air shipment, fast courier shipment according to customer advice. |
Our Factory
2500 square meters of product assembly workshop and 700 square meters of R&D and design office building.
Our Service
1. We guarantee that you will get higher quality and better price products from us!
2. We guarantee that we will deliver the goods for you as soon as possible!
3. Our company has a professional after-sales team, thoughtful and timely service to ensure that all users can use it without worry!
4. Our product software is upgraded for free for life, and the maintenance of minor faults is free for life!
5. We promise to reply your inquiry/email as soon as possible.
