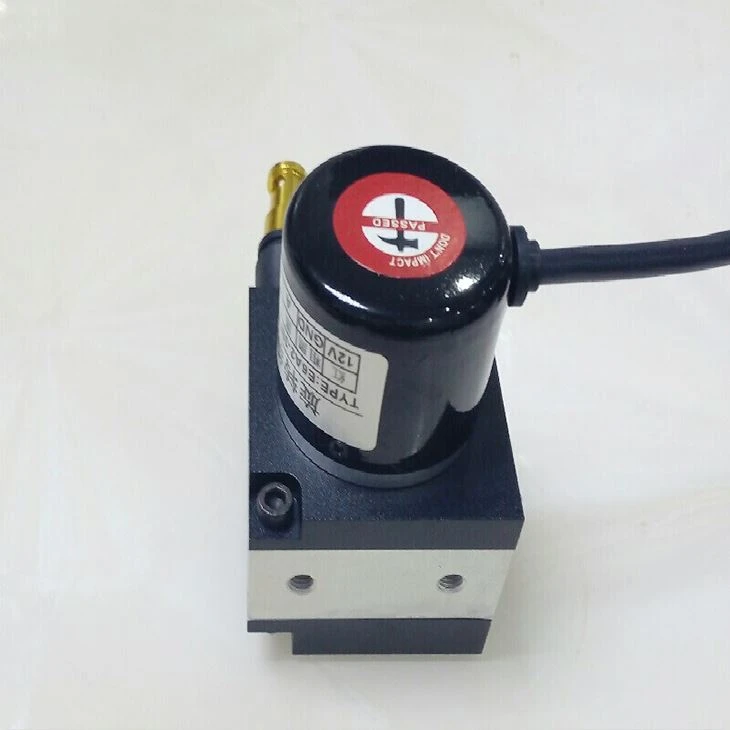

Draw Wire Encoder
Draw wire encoder
Product Description：
NKKs60 series digital output pull rope displacement transducer has a maximum measuring stroke of 3000mm and a measuring wheel circumference of 200mm. It is our classic pull rope displacement transducer with internal anti-jumper design, which eliminates the possibility of wire jamming. After years of testing on various occasions, it has been recognized by many customers at home and abroad. This product has EU CE export certification, ROSH environmental protection certification, and can be exported to various countries in the EU.
Main technical parameters：
|
Signal output |
Digital (pulse) signal |
|
Measuring stroke |
0-3000mm |
|
Output signal |
Differential, open circuit, push-pull, voltage, RS485/232, absolute selectable |
|
Resolving power |
0.01/0.02/0.05/other |
|
Linearity accuracy |
0.05%FS |
|
Repeatability |
0.01% |
|
Maximum speed |
2000mm/s |
|
Cable length |
4M(standard), can be customized |
|
Wire rope |
Highly flexible imported plastic coated steel wire rope |
|
Outlet tension |
6N |
|
Life |
2 million times To 10 million times |
|
Working voltage |
5V, 5-24V, 10-30v |
|
Working temperature |
-25-85℃ |
|
Protection grade |
IP54 (standard), IP65 |
|
Housing material |
Imported aluminum alloy, surface anti-static interference non-conductive |
Our strength:
Packing & Shipping:
Why choose us?
1. Thirteen years of experience in the production of test equipment, China’s high-tech enterprises, and guaranteed product quality!
2. Our company has a high-level R&D team composed of more than ten people, who can customize various test equipment at the fastest speed according to your needs and and the product technology is advanced!
3. The company has its own machining workshop and installation workshop, advanced machining equipment, skilled operating technicians, and strict testing procedures. Therefore, the delivery is timely and the quality is guaranteed!
4. Our products are all over the world and have a good reputation!
