Hydraulic Fatigue Tester

Overview:

The electro-hydraulic servo dynamic and static testing machine is mainly used to test the dynamic characteristics of metal, non-metal and composite materials at room temperature (or high and low temperature, corrosive environment). The testing machine can carry out the following tests:u

★ tensile and compression test

u★crack propagation test

The closed-loop servo control system composed of electric controller, servo valve, load sensor, displacement sensor, extensometer and computer can automatically and accurately control the test process, and automatically measure test force, displacement, deformation, torque, angle and other test parameters.

The testing machine can realize sinusoidal wave, triangle wave, square wave, sawtooth wave, anti-sawtooth wave, pulse wave and other waveform. It can perform mechanical tests of tension, compression, bending, low cycle and high cycle fatigue. It can also be equipped with an environmental test device to complete environmental simulation tests at different temperatures.

The test machine is flexible and convenient to operate. The lifting of the mobile beam, locking, sample clamping are completed by the button operation. It adopts advanced hydraulic servo drive technology loading, high-precision dynamic load sensor and high-resolution magnetostrictive displacement sensor to measure the force and displacement of the specimen. The full digital measurement and control system realizes PID control of force, deformation and displacement, and smooth conversion between the controls. The test software works in WINDOWS XP/Win7 Chinese environment, with powerful data processing functions. Test conditions and test results are automatically saved, displayed and printed. The test process is controlled by computer. The testing machine is an ideal cost-effective test system for scientific research institutes, metallurgical construction, national defense, colleges and universities, machinery manufacturing, transportation and other industries.

1)GB/T 2611-2007 General requirements for testing machines

2)GB/T16825.1-2008 Verification of static uniaxial testing machines. Part 1:Tension/compression testing machines. Verification and calibration of the force-measuring system

3)GB/T 16826-2008 Electro-hydraulic servo universal testing machines

4)JB/T 8612-1997 Electro-hydraulic servo universal testing machines

5)JB9397-2002 Tension-compression fatigue testing machines. Technical specification

6)GB/T 3075-2008 Method of axial force controlled fatigue testing of metals

7)GB/T15248-2008 The test method for axial loading constant-amplitude low-cycle fatigue of metallic materials

8)GB/T21143-2007 Metallic materials-Unified method of test for determination of quasistatic fracture toughness

9) HG/T 2067-1991 Technical specifications for rubber fatigue testing machines

10)ASTM E399-09 Standard Test Method for Measurement of Fracture Toughness

11) ASTM E1820 2001 Standard Test Method for Measurement of Fracture Toughness JIC

1. High rigidity double-column portal main loading frame;

2. Intelligent constant pressure silent power source;

3. Full digital dynamic and static control system;

4. Chinese and English man-machine dialogue lower computer operation application software;

5. Advantech industrial computers and office printers;

6. Test-related conventional aids

The main technical indicators:

Model PWS-	10H	25H	50H	100H	200H	300H	500H	1000H
Maximum test force (dynamic and static)kN	±10	±25	±50	±100	±200	±300	±500	±1000
Host frame	Two columns			Two or four columns		Four columns	Four columns	Four columns
Effective column width（mm）	555			635	635	650×500	850×600	950×700
Test space(mm)	800			800	800	1000	1500	1500
Test force measurement range	Dynamic 2%～100%FS
Force Accuracy and Volatility	Better than the indicating value by 1%; the amplitude fluctuation is not greater than ±1%F.S of each file
Test force resolution	1/250000 yards
Test force indicating value accuracy	Dynamic ±1%; static 0.5%
Displacement measurement range	100mm(±50mm)
Displacement measurement resolution	0.001mmm
Displacement indicating value accuracy	Indication value accuracy ±0.5% from 1%
Deformation	Indication value accuracy from 2%, within ±0.5%
Frequency Range	Standard machine 0.01-50HZ (depending on the controller) Static pressure support actuator: 0.01-100HZ
Main waveform	Sine wave, pulse wave, square wave, sawtooth wave, random wave

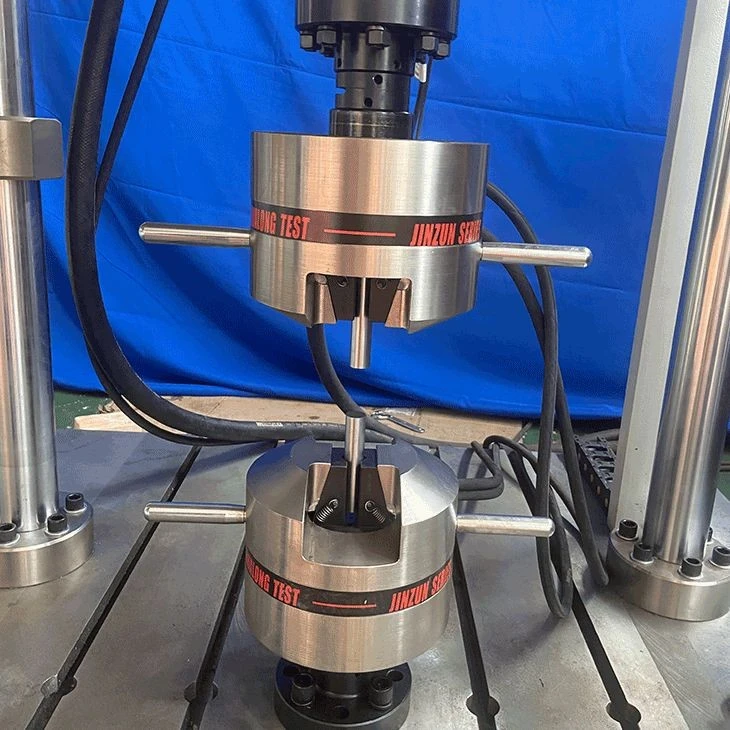

Aids	Hydraulic forced clamping body with round and flat specimen jaws
	Compression aids



Our strength:



Our Commitment:

1. We are a test equipment manufacturer!

2. We have a R & D design team to ensure that you get higher product quality and better prices!

3. We have our own parts processing workshop and product installation workshop, so we guarantee delivery for you as soon as possible!

4. Our company has a professional after-sales team, thoughtful and timely service, to ensure that all users have no worries!

5. Our product software upgrade is free for life, small fault maintenance is free for life!

6. We promise to reply to your inquiry/email as soon as possible.
