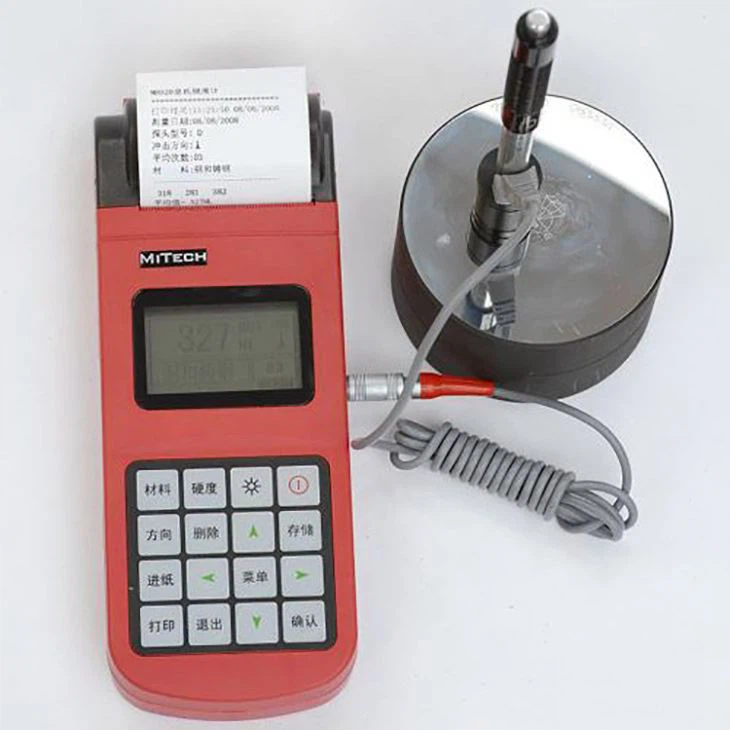

LEEB140 Leeb Hardness Tester
LEEB140 Leeb hardness tester
Product introduction:
Portable Leeb hardness tester leeb140 is a multi-functional hardness measuring instrument with built-in printer and tolerance setting. It has a built-in high-speed thermal printer, which supports on-site instant printing, impartiality of measurement results, and data storage and traceability. The machine uses all Chinese display, menu-based operation, simple and convenient operation. It can directly display various hardness values such as Richter, Brinell, Rockwell, Vickers, Shore, etc. Small and portable, the instrument is suitable for harsh operating environments and is resistant to vibration, shock and electromagnetic interference.
Features:
1. According to the Leeb hardness measurement principle, it is mainly used for Rockwell and Brinell, also known as portable Rockwell hardness tester, and the Rockwell measurement interface is displayed when it is turned on.
2. It is calibrated using Rockwell hardness test blocks.
3. Equipped with D-type impact device, the user’s subsequent test block consumables cost can be saved by 90%
4. Mutual conversion between hardness and tensile strength;
5. It can display measurement value, average value, date, impact direction, test times, test material, hardness scale and other information;
6. One host can be equipped with 7 different impact devices, which can be automatically recognized without calibration when replacing;
7. It can input the test date and code;
8. It has the function of soft calibration of indication value;
9. It has charging indication and low voltage alarm function;
10. It can print test results;
11. It can automatically shut down;
12. It can replace the rechargeable battery by itself.
Scope of application:
● Installed mechanical or assembly components;
● Mould cavity;
● Heavy workpiece;
● Failure analysis of pressure vessels, steam turbine generator sets and their equipment;
● Measuring workpieces with narrow space;
● Bearings and other parts;
● Material distinction of metal material warehouse;
● Inspection of multiple measurement locations in a large range of large workpieces.
The main purpose:
For the hardness testing of products in the mass production process. Generally, a standard set can meet the testing requirements.
2. For hardness testing of heat treatment such as annealing, tempering, quenching, etc. If there is a hardened layer when selecting a model, you need to pay attention to the thickness of the hardened layer. If the hardened layer is thin, you need to choose a C-type impact device.
3. Pay attention to the bearing diameter when testing the hardness of the bearing. If the diameter is too small, you need to choose a special-shaped support ring.
4. If the gear is too small during the gear hardness test, a DL impact device needs to be selected.
5. When testing castings, if it is difficult to handle the surface finish, it is necessary to choose a G-type impact device.
Technical parameter :
|
Project name |
Leeb140 |
|
Measuring range |
100 ~ 990HLD |
|
Indication error/repeatability |
±6HLD（HLD=760）/ 6HLD（HLD=760） |
|
Storage |
600 groups |
|
Recognizable impact device |
D、G、C、DL、DC、D+15、DS |
|
Impact device socket |
LEMO socket |
|
Measurement direction |
360° |
|
Hardness scale |
HL、HB、HRC、HRB、HV、HS |
|
PC communication |
Have |
|
Power supply |
Lithium rechargeable battery |
|
Print paper diameter |
26.7±0.5mm |
|
Paper width |
56.5±0.5mm |
|
Charging specifications |
9V/1800mA |
|
Charging time |
3 - 6 hours |
|
Operating hours |
10 hours |
|
Shell material |
Plastic shell |
|
Dimensions |
230*86*46 mm |
|
Weight |
400g |
|
The standard configuration |
Host, D-type impact device, standard test block, small support ring, nylon brush, charger, printing paper |
|
Optional |
Special-shaped support ring, impact device, standard test block, communication software, computer |
Our Commitment：
1. We are a test equipment manufacturer!
2. We have a R & D design team to ensure that you get higher product quality and better prices!
3. We have our own parts processing workshop and product installation workshop, so we guarantee delivery for you as soon as possible!
4. Our company has a professional after-sales team, thoughtful and timely service, to ensure that all users have no worries!
5. Our product software upgrade is free for life, small fault maintenance is free for life!
6. We promise to reply to your inquiry/email as soon as possible.
