Digital Display Tensile Testing Machine
WDS-01/02/03/05/1/2/5/ Digital Display Tensile Testing Machine
It is applicable for tensile, compression, bending, shear and low cycle testing of various materials. It is suitable for metal, rubber, plastic, spring, textile and component testing.
Standards：
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,
GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Main Technical Parameters:
|
Model |
WDS-01,02,03,05,1,2,3,5 |
|
Structure |
Single column, double spaces |
|
Max. Load(kN) |
0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5 |
|
Material |
All aluminum alloy surface spray painting shell |
|
Load accuracy |
Class 1/ Class 0.5 |
|
Load range |
2%～100%F·S |
|
Load resolution |
1/ 30000 |
|
Resolution of displacement |
0.01mm |
|
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
|
Speed accuracy |
within ±1% set speed |
|
Tensile space(mm) |
600 (can be customized) |
|
Compression space(mm) |
600 (can be customized) |
|
Test width(mm) |
100 |
|
Beam travel distance(mm) |
772 |
|
Workbench thickness(mm) |
26 |
|
Base height(mm) |
158 |
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
About us:

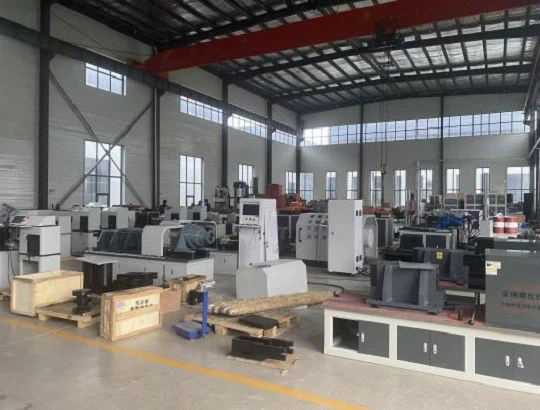

Our company is a professional testing machine manufacturer in China. We have 13 years of production history and is well-known in China. We have our own R&D team, spare parts processing workshop, testing machine assembly workshop and professional after-sales team! We can customize tensile testing machine, pressure testing machine, bending testing machine, torsion testing machine, fatigue testing machine, fastener special testing machine, etc. Welcome friends from all over the world to visit our company and look forward to more cooperation!
Our Commitment:
1. We are a test equipment manufacturer!
2. We have a R & D design team to ensure that you get higher product quality and better prices!
3. We have our own parts processing workshop and product installation workshop, so we guarantee delivery for you as soon as possible!
4. Our company has a professional after-sales team, thoughtful and timely service, to ensure that all users have no worries!
5. Our product software upgrade is free for life, small fault maintenance is free for life!
6. We promise to reply to your inquiry/email as soon as possible.
