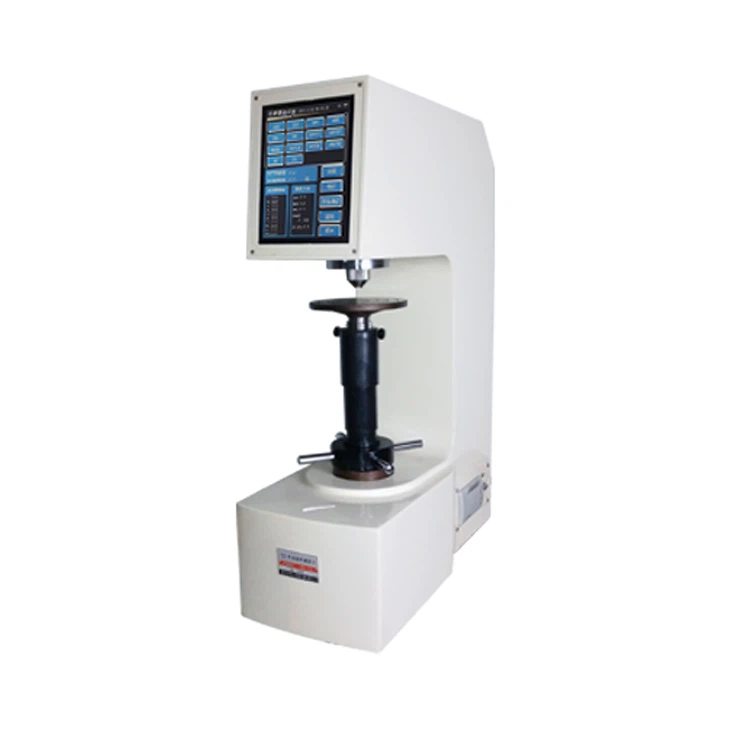

HRS-150 Electric Digital Rockwell Hardness Tester

Overview:

HRS-150 Digital Rockwell Hardness Tester is a high-tech product with high precision and stable performance. The interface is menu-based, and the operation is simple, intuitive and convenient. It is widely used to measure the Rockwell hardness of ferrous metals, non-ferrous metals, non-metallic materials, quenched and tempered and other heat-treated materials, such as cemented carbide, carburized steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, mild steel, quenched and tempered steel, annealed steel, bearings and other materials.



Technical parameter:

Technical parameter			Machine model
			HRS-150
Initial test force	98.07N（10kgf）		·
Total test force	588.4N（60kgf）、980.7N（100kgf）、1471N（150kgf)		·
Measurement range	20-90HRA ，20-100HRB，20-70HRC		·
Load holding time	1-30s		·
Maximum height of specimen		210mm	·
Distance from indentation center to machine wall		165mm	·
Hardness Resolution		0.1HR	·
Accuracy		In line with GB/T230.2、ISO6508-2and American ASTM E18	·
Dimension		510*290*730（mm）	·
Net weight		80kg	·
Gross weight		92kg	·

Note: “·” is the standard configuration; “O” is the optional parts

HRS-150 electric Rockwell hardness tester scale hardness range table:：
